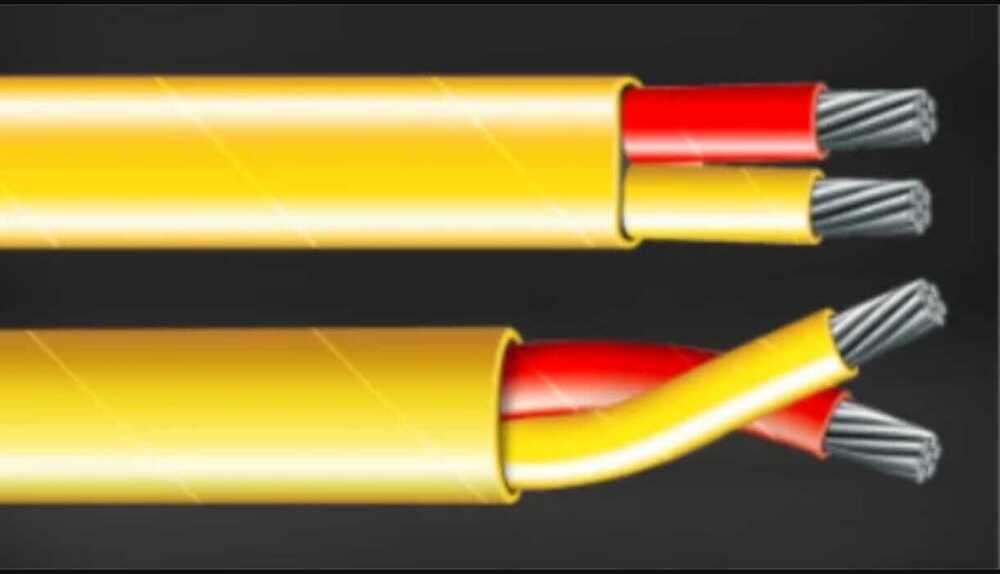

Send InquiryPFA-SS Braiding insulated
Price 100 INR/ Meter
PFA-SS Braiding insulated Specification
- Connector Type
- No connector (bare ends), customizable as per requirements
- Temperature
- -80C to +260C
- Cable Length
- Standard and custom available
- Conductor Type
- Stranded or Solid
- No Of Core
- Single, Twin, Multi-core (as per request)
- Product Type
- PFA-SS Braiding insulated Cable
- Material
- PFA insulated, Stainless Steel Braided
- Function
- Electrical insulation with enhanced mechanical protection
- Usage
- Suitable for high temperature and corrosive environments
- Voltage Surge
- Up to 1000V
- Frequency (MHz)
- DC to 1000 MHz
- Rated Voltage
- 600V
- Rated Current
- Depends on cable size, typically up to 10A
- Cable Capacity
- Single and multi-core options available
- Insulation Material
- Perfluoroalkoxy (PFA)
- Conductor Material
- Tinned Copper
- Length
- Customizable, standard rolls of 100 meters
- Size
- 0.5 sqmm to 6 sqmm (variety of sizes available)
- Color
- Transparent outer with steel braiding, inner insulation customizable
- Diameter
- Varies as per core size, typically 1.5mm to 10mm
- Application
- Instrumentation, Control Panels, Thermocouples, High Temperature Zone Cabling
- Flame Retardant
- Yes
- Shield Type
- Stainless Steel Braided Shield
- Test Voltage
- 2500V AC
- Flexibility
- High
- Abrasion Resistance
- Superior due to SS Braiding
- RoHS Compliance
- Yes
- UV Resistance
- Yes
- Chemical Resistance
- Excellent
- Halogen Free
- Yes
About PFA-SS Braiding insulated
| Limit Of Error | According to ASTM E230 / 77 / IEC 584 |
| Conductor | Solid, Multistrand, Thermocouple Grade Materials as per ASTM E230 & ANSI MC 96.1 |
| Insulation | Extruded PFA Insulated |
| Outer Braiding | Stainless Steel Wire Braiding |
| Operating Temp. | 260 DegreeC |
| Color Code | According to ANSI MC 96.1 |
