Send InquiryMulticore Shielded Jackted Cables and Wires
Price 60 INR/ Meter
MOQ : 100000 Meters
Multicore Shielded Jackted Cables and Wires Specification
- No Of Core
- Multicore
- Connector Type
- None
- Temperature
- Up to 70C
- Cable Length
- Customizable
- Conductor Type
- Stranded
- Product Type
- Multicore Cables
- Material
- Copper with PVC insulation
- Function
- Power transmission
- Usage
- Industrial and commercial applications
- Cable Capacity
- High
- Insulation Material
- PVC
- Conductor Material
- Copper
- Length
- Customizable
- Size
- Varied sizes
- Color
- Black Green Orange
- Warranty
- Standard manufacturer warranty
- Diameter
- Varied sizes
- Application
- Power Distribution
About Multicore Shielded Jackted Cables and Wires
The Standard braid shielding and the more sophisiticated Served Sheilding (much more longer flex-life 100% overlap coverage and upto 60% reduced weight ) are available. Single twin planetary-twisted pairs traids etc. acailable as per customer's requirement. Insulated conductors of addorted sizes with cables can be formed into multivore cables, (with or without overall sheilding), with tape wrapped Mylar,PTFE or conventional extruded FEP,PFA & PVC jackets/sheaths, complete harness as per customer's requirement.
Cable Construction
| Conductor : | Silver or Nickel or Tinned Plated Copper or Bare Copper Wire |
| Insulation : | PTFE Wrap or PTFE/Polyamide/PTFE Combination or PTFE/FG |
| Twisting : | Cores Twisted in pairs or as per Customer Requirement |
| Screening : | Screened or Braided with Silver or Nickel or Tinned Plated Copper or BC Wire |
| Jacket : | PTFE or FG Braid or PVC and other. |
| Properties : | Resistance to Fire, Chemicals, Acids, Sunlight and Moisture. |
| Voltage Grade : | 250 V, 600 V or 1000 V and above as per customer requirement. |
| Temperature : | - 65 C to + 260 C |
| Size : | AWG 32 to AWG 1 |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in PTFE WIRES & CABLE Category

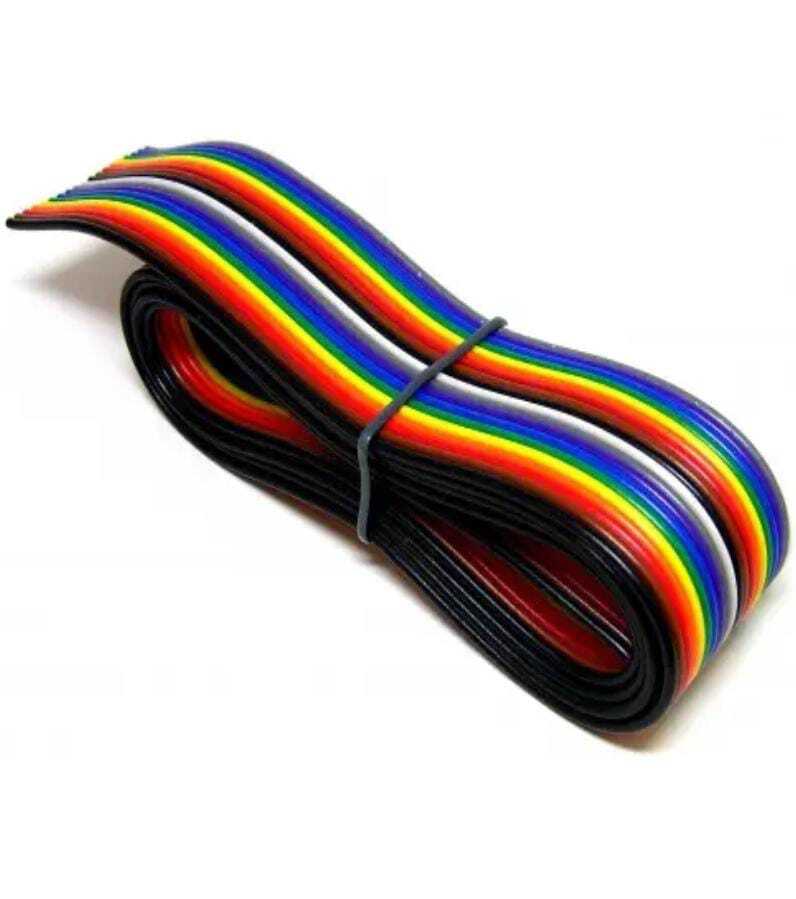

Flat Bonded Ribbon Cable
