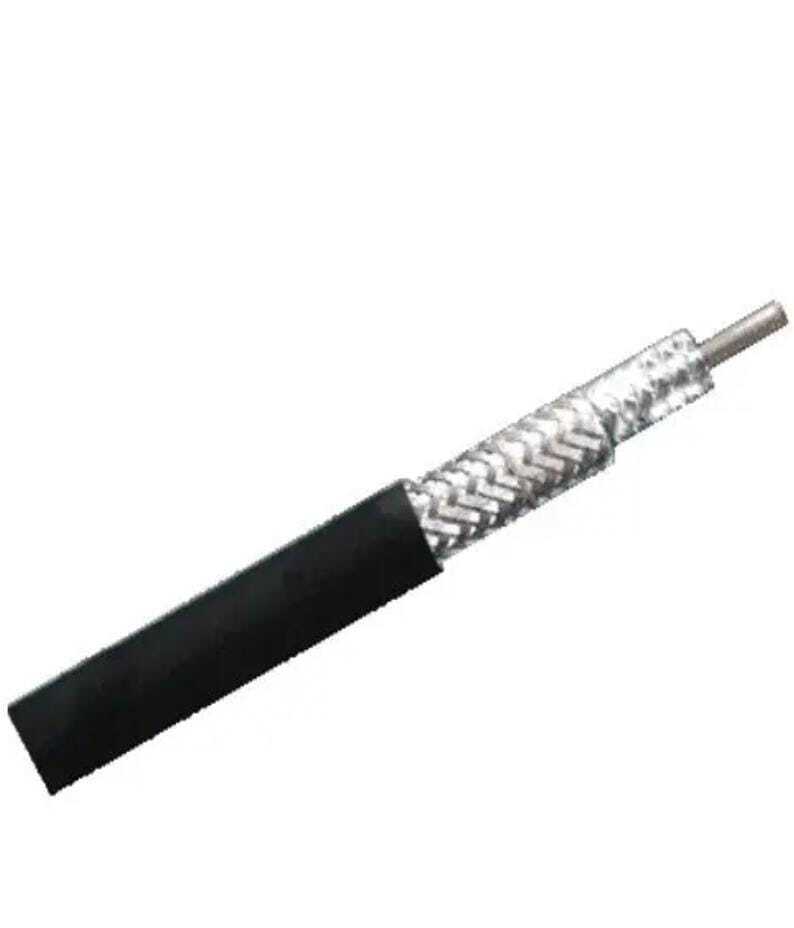

PTFE Triaxial Cables

Name: PTFE Triaxial Cables
Brand: Ghaziabad Flopol Insulation Pvt. Ltd.
Price: 100 INR
Availability: InStock

Price 100 INR/ Meter

Get a Price/Quote

PTFE Triaxial Cables Specification

Connector Type
BNC/TNC/Customized

Conductor Type
Stranded or Solid

No Of Core
3

Cable Length
Available in various lengths

Temperature
-65C to +200C

Product Type
PTFE Triaxial Cable

Material
PTFE (Polytetrafluoroethylene)

Function
Signal Transmission with High Insulation

Usage
Medical Equipment, Electronic Testing, and Measurement Instruments

Voltage Surge
Up to 5 kV

Frequency (MHz)
Up to 100 MHz

Rated Voltage
Up to 1000 V

Rated Current
Up to 5 A

Cable Capacity
Low capacitance for accurate signal transmission

Insulation Material
PTFE

Conductor Material
Silver Plated Copper

Length
Customizable as per requirement

Size
Standard/Customized

Color
White/Custom

Diameter
Approx. 2.5 mm to 6 mm (depending on specification)

Application
Laboratory, Medical, Electronic Instrumentation

Surface Finish
Smooth and Glossy

Flexibility
High Flexibility for Multiple Bending

Resistant To
Chemicals, Moisture, and UV Radiation

Mechanical Strength
High Tensile Strength

Shield Type
Dual Shielded (Inner and Outer Shields)

Impedance
Characteristic Impedance 50 / 75

Outer Jacket
PTFE or FEP as per requirement

Flame Retardant
Yes

Dielectric Constant
2.1 (Typical for PTFE)

About PTFE Triaxial Cables

For very low levels of Singal leakage triaxial & double shielded cables are used to minimize this leakage. Triaxial cables are preferred Triaxial shielding construction minimize 10-20%less Leakage in comparision to double shielded,Cables.

The triaxial cable has the usual outer conductor braid.A dielectric layers is provided over it and an additional braid is again provided.outer Jacket is of PVC in normal course depending upon the attenuation,stability requirements and frequency.

M17/60-RG142 | FLEXIBLE, COAXIAL CABLE, 50 OHMS
M17/93-RG178 | FLEXIBLE, COAXIAL CABLE, 50 OHMS
M17/93-00001 | FLEXIBLE, COAXIAL CABLE, 50 OHMS
M17/94-RG179 | FLEXIBLE, COAXIAL CABLE, 75 OHMS
M17/95-RG180 | FLEXIBLE, COAXIAL CABLE, 95 OHMS
M17/110-RG302 | FLEXIBLE, COAXIAL CABLE, 75 OHMS
M17/111-RG303 | FLEXIBLE, COAXIAL CABLE, 50 OHMS
M17/112-RG304 | FLEXIBLE, COAXIAL CABLE, 50 OHMS
M17/113-RG316 | FLEXIBLE, COAXIAL CABLE, 50 OHMS
M17/127-RG393 | FLEXIBLE, COAXIAL CABLE, 50 OHMS
M17/128-RG400 | FLEXIBLE, COAXIAL CABLE, 50 OHMS
M17/131-RG403 | FLEXIBLE, TRIAXIAL CABLE, 50 OHMS

The above are just for indicative Information we manufacture. For any other RF or RG cable having PTFE Dielectric can be manufactured.

Outstanding Construction and Material Quality

Each cable is constructed with a stranded or solid silver-plated copper conductor, coated in PTFE or FEP for maximal durability. A smooth, glossy outer surface provides not only an appealing finish but enhanced mechanical strength and resistance to harsh environments.

Designed for Critical Applications

Engineered for demanding usages, these cables are widely used in medical devices, electronic testing, and precise measurement systems. Their high tensile strength and low capacitance prevent signal loss, offering dependable results even under extensive flexing and challenging laboratory or field conditions.

FAQ's of PTFE Triaxial Cables:

Q: How do PTFE Triaxial Cables ensure accurate signal transmission in sensitive applications?

A: PTFE Triaxial Cables feature dual shielding (inner and outer shields) and a low-capacitance design that minimizes signal loss and interference. The PTFE dielectric provides a stable dielectric constant of 2.1, supporting clear and precise transmission in medical, testing, and instrumentation applications.

Q: What environments are these cables suitable for?

A: These cables are ideal for use in laboratories, hospitals, and industrial environments due to their resistance to chemicals, moisture, and UV radiation. Their robust construction also provides flame retardancy and high mechanical strength, making them reliable in both indoor and outdoor settings.

Q: When should I choose PTFE Triaxial Cables over standard coaxial cables?

A: PTFE Triaxial Cables are recommended when superior insulation, lower noise, minimal signal interference, and high flexibility are required-especially in high-precision and safety-critical applications such as medical equipment or sensitive electronic instrumentation.

Q: Where can these cables be installed, and are custom configurations available?

A: These cables can be installed in environments ranging from clinical laboratories to industrial test facilities. Custom lengths, diameters, core counts, outer jacket materials, colors, and connector types (BNC/TNC/customized) are available, allowing precise matching to project specifications.

Q: What is the process for ordering PTFE Triaxial Cables in customized sizes or with specific connectors?

A: Clients can specify their required length, core count, conductor type, diameter, and connector type during the order process. Manufacturers and suppliers in India can accommodate customizations to meet unique installation needs and compliance standards.

Q: How do PTFE Triaxial Cables benefit medical and laboratory applications?

A: These cables provide high flexibility for frequent bending, high insulation for accurate readings, and excellent durability in demanding environments. They help maintain signal integrity and ensure safety standards in medical and scientific equipment operations.
