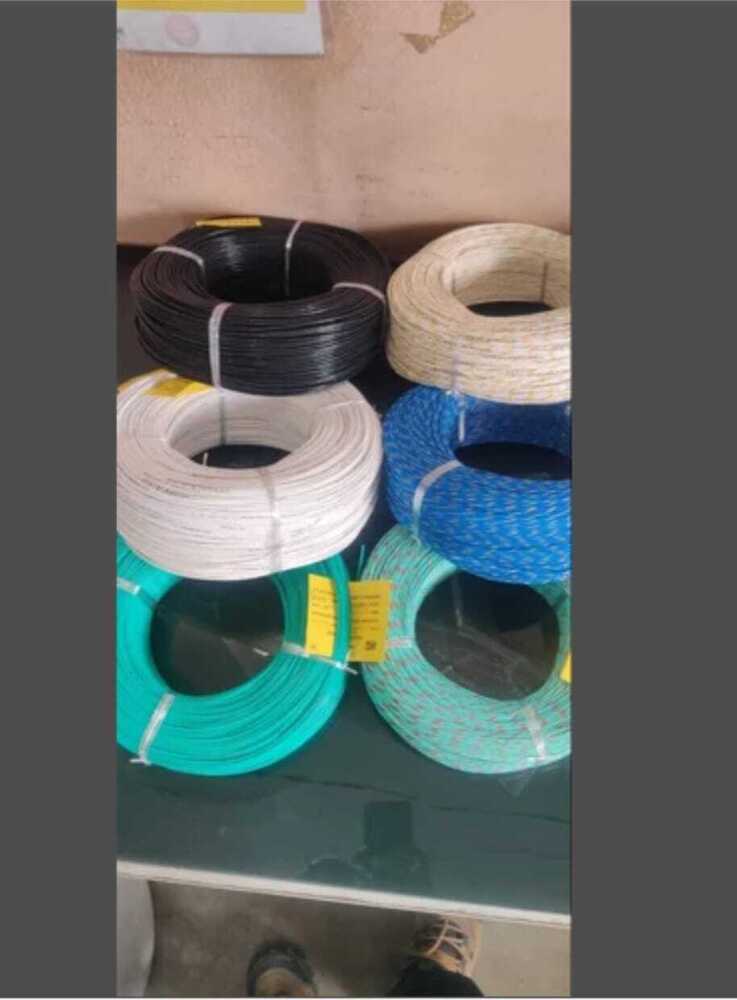

PTFE Hook Up Wire

Price 120 INR/ Meter

Get a Price/Quote

MOQ : 100 Meters

Conductor :	Silver or Nickel or Tinned Plated Copper or Bare Copper Wire.
Insulation :	PTFE Wrap or PTFE / Polyamide / PTFE Combination or PTFE / FG
Properties :	Resistance to Fire, Chemicals, Acids, Sunlight and Moisture.
Voltage Grade :	250 V, 600 V or 1000 V and above as per customer requirement.
Temperature :	-65 C to + 260 C
Size :	AWG 32 to AWG 1 and ( AWG 0 to AWG 0000 on request only )

AWG	Number Of standard	AWG	Nominal Conductor Diameter(MM)	Nominal Stand Diameter	Nominal Cross Sectional Area (sq.MM)	Maximum Resistance Ohms/100m At 20C	ET(250V AC RMS) Nom. O.D.(MM)	E(600V AC RMS) Nom. O.D.(MM)	EE(1000V AC RMS) Nom. O.D.(MM)
8	133	29	4.290	0.286	8.54	0.217	-	-	5.30
10	37	26	2.835	0.405	4.76	0.390	-	-	3.586
11	37	27	2.520	0.360	3.76	0.499	-	3.02	3.27
19	24	2.550	0.510	3.88	0.489	-	3.05	3.30
12	37	28	2.240	0.320	2.98	0.620	-	2.74	3.99
19	25	2.275	0.455	3.09	0.600	-	2.775	3.02
13	19	26	2.000	0.405	2.45	0.770	-	2.50	2.75
14	37	30	1.750	0.250	1.92	0.98	-	2.25	2.50
19	27	1.800	0.360	1.93	0.96	-	2.30	2.55
15	19	28	1.600	0.320	1.52	1.22	-	2.10	2.35
16	37	32	1.400	0.200	1.16	1.54	-	1.90	2.15
19	29	1.430	0.286	1.22	1.51	-	1.93	2.18
18	37	34	1.120	0.160	0.74	2.50	-	1.93	2.18
19	30	1.250	0.250	0.93	1.93	-	1.75	2.00
7	26	1.215	0.405	0.90	2.10	-	1.715	1.96
20	37	36	0.910	0.130	0.49	3.44	1.21	1.41	1.66
19	32	1.000	1.000	0.60	3.02	1.30	1.50	1.75
7	28	0.960	0.320	0.56	3.28	1.26	1.46	1.71
22	19	34	0.800	0.160	0.38	4.90	1.10	1.30	1.55
7	30	0.750	0.250	0.34	5.20	1.05	1.25	1.50
1	22	0.645	0.645	0.33	5.60	0.94	1.14	1.39
24	19	36	0.650	0.130	0.25	7.70	0.95	1.15	1.40
1	24	0.510	0.510	0.20	8.80	0.81	1.01	1.36
7	32	0.600	0.200	0.22	8.20	0.90	1.10	1.35
26	19	38	0.500	0.100	0.15	12.00	0.80	1.00	1.25
7	34	0.480	0.160	0.14	13.20	0.78	0.98	1.23
1	26	0.450	0.405	0.13	14.10	0.70	0.90	1.15
28	7	36	0.390	0.130	0.90	20.93	0.69	0.89	1.14
1	28	0.320	0.320	0.80	22.50	0.62	0.82	1.07
30	7	38	0.300	0.100	0.05	32.50	0.60	0.80	1.15
1	30	0.250	0.250	0.05	35.70	0.55	0.75	1.00
32	7	40	0.240	0.080	0.04	54.60	0.54	0.74	0.99
1	32	0.200	0.200	0.03	55.90	0.50	0.70	0.95
