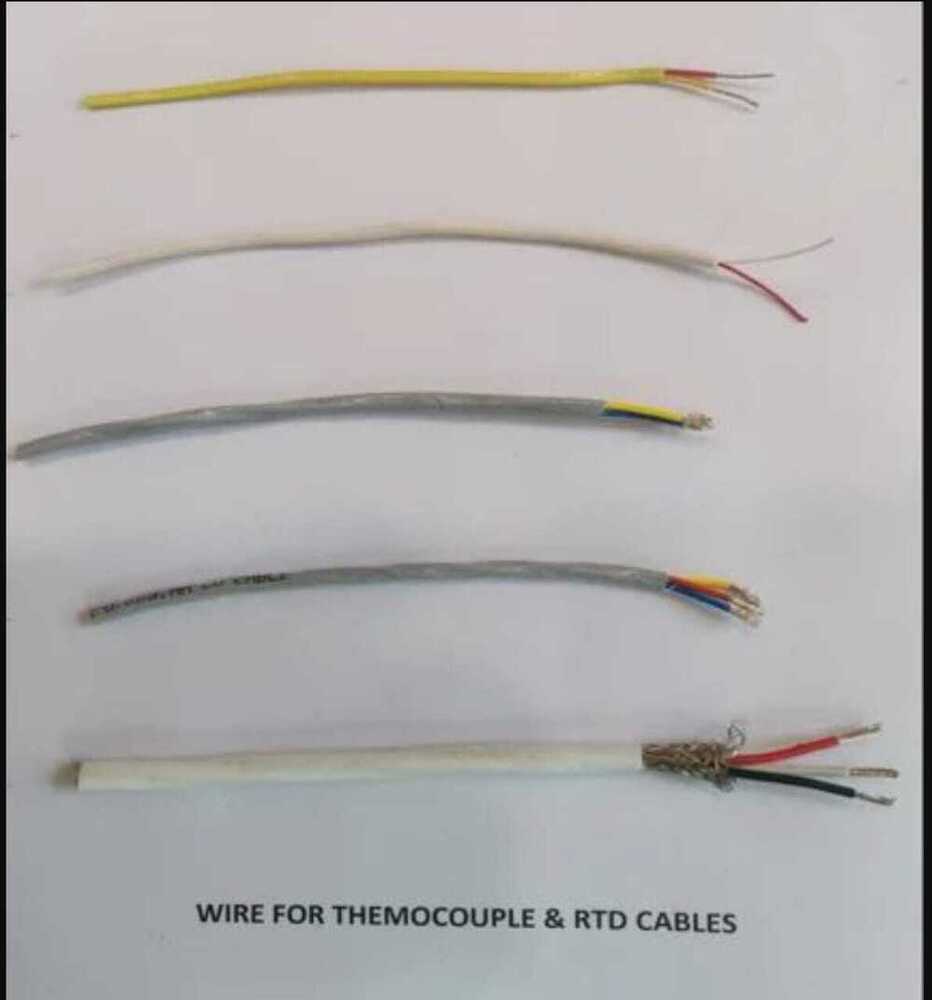

Send InquiryPTFE-PTFE Insulated
Price 100 INR/ Meter
PTFE-PTFE Insulated Specification
- Cable Length
- Standard 100 meters or customized
- No Of Core
- Single or Multi core
- Conductor Type
- Stranded or Solid
- Connector Type
- Bare ends or as specified
- Temperature
- -60C to +260C
- Product Type
- PTFE-PTFE Insulated Cable
- Material
- PTFE (Polytetrafluoroethylene)
- Function
- Electrical insulation and signal transmission
- Usage
- Highly reliable connection in electrical/electronic circuits
- Voltage Surge
- Up to 1100V
- Frequency (MHz)
- DC to 1000 MHz depending on type
- Rated Voltage
- 250V to 1100V
- Rated Current
- As per conductor size (typically up to 10A)
- Cable Capacity
- Single core standard, can vary with configuration
- Insulation Material
- PTFE
- Conductor Material
- Tinned Copper
- Length
- Available in custom lengths, standard 100 meters
- Size
- 0.25 sq mm to 16 sq mm
- Color
- Available in White, Red, Blue, Yellow, Green & Black
- Diameter
- Varies from 1 mm to 7 mm depending on size
- Application
- Industrial, commercial and high reliability environments
- RoHS Compliance
- Yes
- Insulation Thickness
- 0.5 mm to 1.0 mm depending on size specification
- Installation
- Suitable for exposed or concealed wiring
- Flexibility
- High flexibility for ease of installation
- Dielectric Strength
- 20 kV/mm
- Chemical Resistance
- Excellent against acids, bases, and solvents
- Standards Compliance
- Meets MIL and BS standards
- Water Absorption
- < 0.01% (negligible)
- UV Resistance
- Excellent for outdoor use
- Flame Retardant
- Yes, UL94 V-0 rated
- Tensile Strength
- High, suitable for mechanical stress
About PTFE-PTFE Insulated
| Insulation | PTFE Insulation |
| Conductor | Solid, Multistrand, Thermocouple/Extension/Compensating Grade Materials as per ASTM E230 / 77 & IEC5 |
| Outer Jacket | PTFE Sheathed |
| Operating Temp. | 260 DegreeC |
| Limit of Error | According to ASTM E230 / 77 / IEC 584 |
| Color Code | According to ANSI MC 96.1 |
Thermocouple Cables are used to measure the temperature directly.
Thermocouple Extension or Compensating wires are only used to extend a thermocouple signal from a sensor to an instrument for readings.
