PTFE Sleeves

• Application
• Automotive, electronics, electrical control panels, aerospace

• Cable Capacity
• Supports single or multi-core wires

• Cable Length
• Customizable

• Color
• Typically white; other colors on request

• Conductor Material
• Compatible with copper and aluminum wires

• Conductor Type
• Stranded or solid, wire not included

• Connector Type
• Not applicable (sleeve only)

• Diameter
• Ranges from 1 mm to 25 mm or customized

• Frequency (MHz)
• Suitable for high-frequency applications

• Function
• Electrical insulation and protection

• Insulation Material
• PTFE

• Length
• Available in standard and customized lengths

• Material
• Polytetrafluoroethylene (PTFE)

• No Of Core
• Single core (sleeving for individual wires)

• Product Type
• PTFE Sleeve

• Rated Current
• Varies as per conductor rating

• Rated Voltage
• Up to 600 V

• Size
• Available in various inner diameters (e.g., 1 mm to 25 mm)

• Temperature
• -65C to +260C

• Usage
• Used to provide insulation in wiring harnesses and electrical assemblies

• Voltage Surge
• Up to 2500 V

• Application
• Electronic, Automotive, Aerospace, Medical Equipment, Electrical Panels

• Cable Capacity
• Varies as per size (typically for 1 to 50 mm2 wires)

• Cable Length
• Customizable lengths

• Color
• White, Transparent (other colors upon request)

• Conductor Material
• Copper/Aluminium wires compatible

• Conductor Type
• Stranded/Solid core supported

• Connector Type
• Not applicable (sleeve only)

• Diameter
• 0.5 mm to 25 mm (inner)

• Frequency (MHz)
• DC to several MHz

• Function
• Electrical insulation and protection

• Insulation Material
• PTFE

• Length
• Standard 1 m to 100 m roll, customizable

• Material
• Polytetrafluoroethylene (PTFE)

• No Of Core
• Single core sleeve (covers one wire at a time)

• Product Type

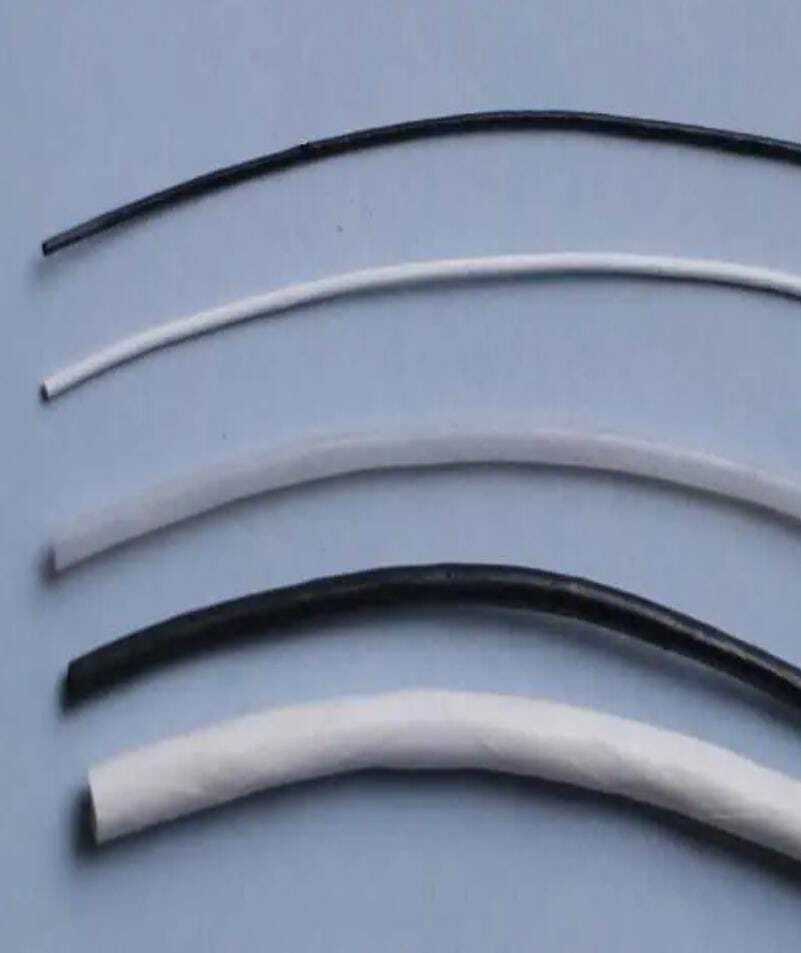

• PTFE Wire Sleeve

• Rated Current
• Dependent on wire size and application

• Rated Voltage
• 600 V

• Size
• Available in 0.5 mm to 25 mm inner diameter

• Temperature
• -65C to +260C

• Usage
• Wire Harnessing, Electrical Wiring, Cable Protection

• Voltage Surge
• Up to 2 kV
