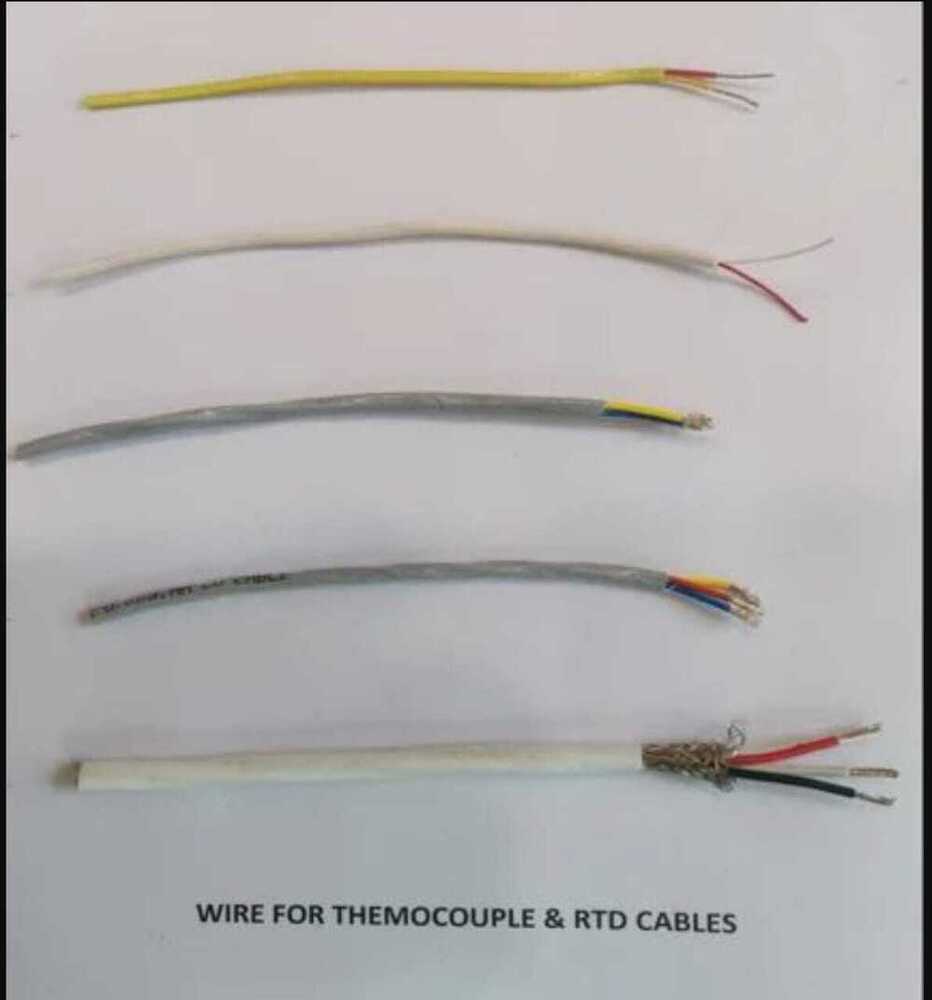

Send InquiryPolyimide-PTFE-Polyimide-PTFE-MICA-FG-SS Braiding insulated
Price 100 INR/ Meter
Polyimide-PTFE-Polyimide-PTFE-MICA-FG-SS Braiding insulated Specification
- No Of Core
- Single core or multi-core options
- Conductor Type
- Stranded or solid
- Temperature
- -60C to +600C
- Cable Length
- Custom lengths available
- Connector Type
- None (bare ends, can be fitted as required)
- Product Type
- High Temperature Braided Cable
- Material
- Polyimide, PTFE, Mica, Fiberglass, Stainless Steel
- Function
- Insulation and protection under high temperature and harsh environments
- Usage
- Electrical wiring and connections in high temperature applications
- Voltage Surge
- Up to 2500 V
- Frequency (MHz)
- DC to 400 MHz
- Rated Voltage
- 600 V
- Rated Current
- Varies as per conductor size and application
- Cable Capacity
- Standard and custom configurations available
- Insulation Material
- Polyimide, PTFE, Mica, Fiberglass
- Conductor Material
- Nickel-plated copper or tinned copper
- Length
- As per requirement (typically supplied in reels)
- Size
- Customizable; common sizes include 1.5 to 25 sq.mm
- Color
- Brown with fiberglass braiding
- Diameter
- Typical OD: 3 mm to 20 mm depending on configuration
- Application
- Aerospace, industrial ovens, foundries, metallurgical plants
- Moisture Absorption
- Minimal
- Flexibility
- High flexibility for easy installation
- Standards
- IEC, ASTM, or as per customer requirement
- Flame Retardant
- Yes
- Shielding
- Stainless Steel Wire Braiding for electromagnetic protection
- Dielectric Strength
- 20 kV/mm
- Surface Finish
- Smooth, abrasion-resistant outer braided layer
- Packaging
- Carton, wooden drum, or customized packing
- Tensile Strength
- High, due to multi-layer insulation and braiding
- Oil and Chemical Resistance
- Excellent
- RoHS Compliance
- Yes
- Weight
- Varies by size; lightweight construction
About Polyimide-PTFE-Polyimide-PTFE-MICA-FG-SS Braiding insulated
| Conductor | Solid, Multistrand, Thermocouple Grade Materials as per ASTM E230 & ANSI MC 96.1 |
| Insulation | PTFE Temperature Saturated |
| Isolator | Polyimide Tape |
| Inner Sheath | PTFE Temperature Saturated |
| Outer Sheath | Mica Tape / Fiber Glass with High Temp. Varnish |
| Overall Braiding | Stainless Wire Armouring |
| Operating Temp. | 450 DegreeC |
| Limit of Error | According to ASTM E230 / 77 / IEC 584 |
| Color Code | According to ANSI MC 96.1 |
Thermocouple Cables are used to measure the temperature directly.
Thermocouple Extension or Compensating wires are only used to extend a thermocouple signal from a sensor to an instrument for readings.
